Industrial Belting International Ltd

Conveyor belt supply, vulcanising and repairs

Conveyor Belt

Conveyor Belting

Here at IBI Ltd we hold extensive stock of high quality belting both new and reconditioned so that we are able to provide the best application for your needs. All new EP belting in various cover grades is manufactured to BS490 and DIN 22102 at very competitive prices.

Contact Us

Bull horn tread U form tread Sheep horn tread

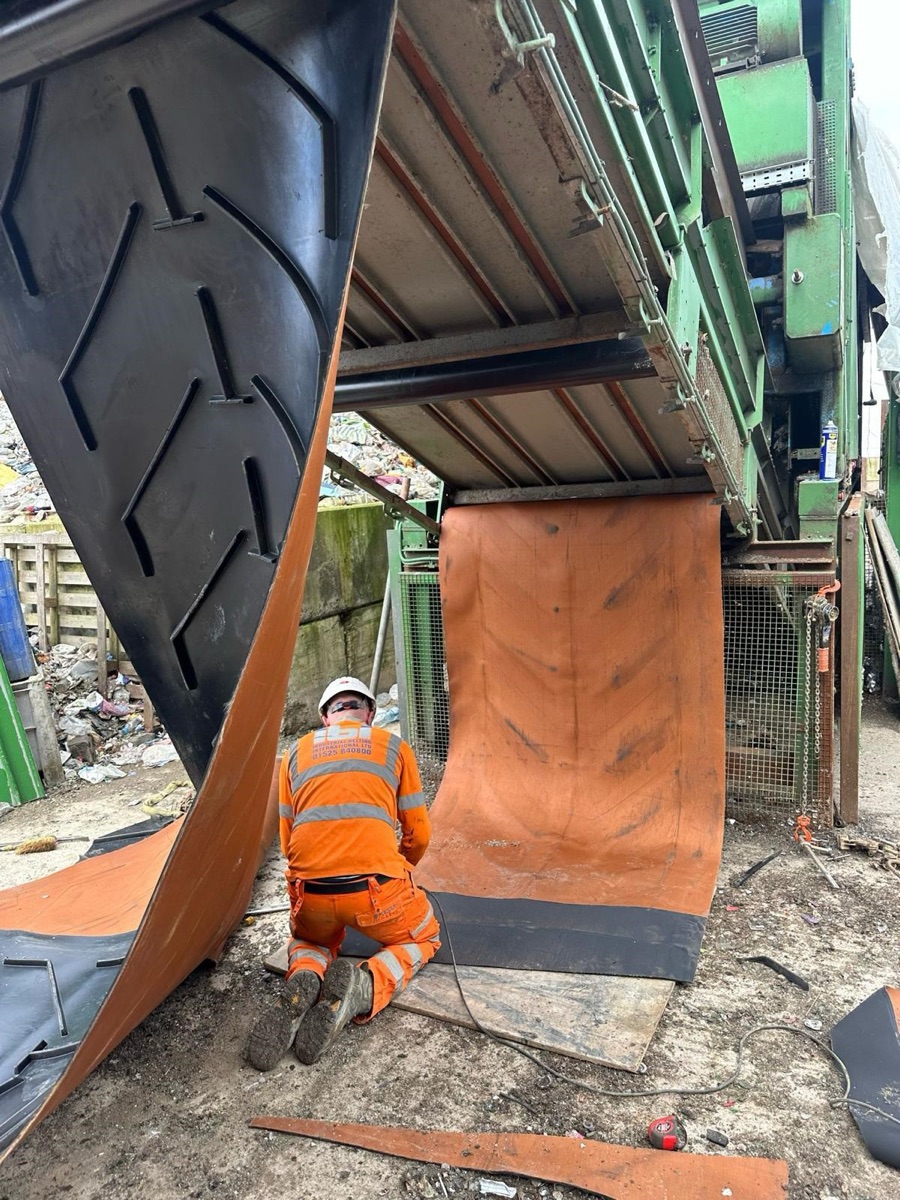

Chevron Belting

Used on incline conveyors where there is a risk of run back materials.

We offer a full range of different heights and profiles to suit most applications.

A 15mm high cleat is suitable from 18 degrees to 30 degrees and 25mm high cleats for up to 40 degrees.

All chevron belting has integrally moulded cleats into the top cover at manufacture.

Heat Resistant Belting

With covers resistant to 150 or 180-200 degrees Celsius for use in carrying cement, clinker slag and foundry sand. IBI has had much success with this product and has proven itself against the competition consistently with its abrasion resistant qualities.

Fire Retardant Belting

For use when carrying highly flammable materials, this is to reduce the risk of combustion.

Oil Resistant Belting

In two varieties for moderate and high oil resistance; this belt type is used within recycling and other industries for handling grain, fertilisers, fodder mixtures, soya beans, tinned goods, wood containing resin and applications where oily and fatty materials are transported.

Chemical Resistant Belting

For operating under highly corrosive conditions such as potash urea handling plants.

Hygienic Belts

Rubber hygienic belts (white) using FDA approved polymers are a specialty. These belts are used in the food processing industry. Other varieties are also designed to meet specific customer needs - e.g. bare back, profile, anti-stick, antistatic, etc.

Gripface Belts

Gripface is manufactured with an impression finish on the belts top cover, it is an ideal application for carrying packages or bags up an incline it can also be used for animal exercise machines.

Elevator Belts

These belts are used for carrying materials at a vertical incline with either plastic or metal buckets bolted on to the belt.

Second Hand Belts

IBI can also supply used belting that have been quality passed to ensure that it is suitable for its requirements.

Specialised Application

We also manufacture belts for specialised applications such as pipe conveyor, bareback/flat belts, anti stick, and antistatic belts with the combination of properties like FR-HR, FR-OR, HR-OR etc.

Ripstop Belts

With metal wires embedded in the top cover across the belt, Ripstop is used where there is a high risk of materials ripping the belt along its length.

Skirt Rubber

Two types are supplied; the 40 degree Shore hardness in 6mm and 10mm thickness is red in colour. This has the highest skirting performance with very long service life, coupled with high rolling resilience offering excellent sealing and wear performance without damaging the belt.

The 60 degree Shore hardness in 6mm, 10mm and 15mm is black in colour. This rubber is harder and less resilient and stiffer when the application requires but still has excellent abrasion resistant qualities.

Specialised Belts to Order

IBI offers an in house service where we are able to make specialised belts that are made to order i.e. endless, sidewall and cleated belts, complete elevator belts and rubber chute socks.

PVC and PU Belting

Used in a wide range of industries such as agriculture, warehousing, materials handling, stone/wood, packaging and metal detection systems. Belts can be made bespoke with frequency welded cleats of varying sizes and corrugated sidewalls for machines such as Eddy current separators.
